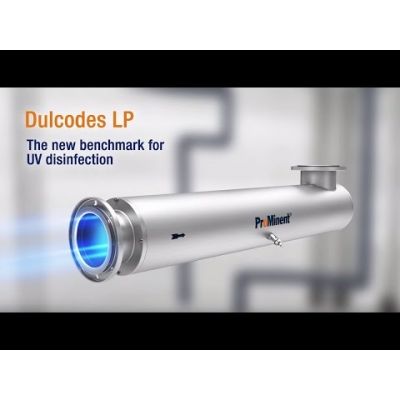

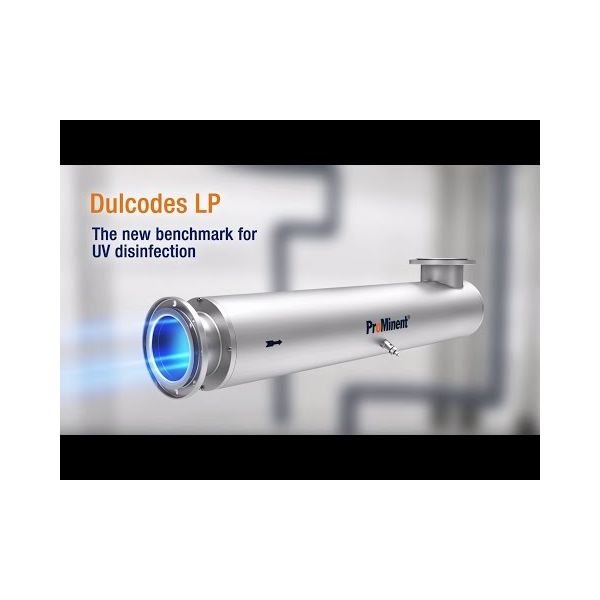

UVC System Dulcodes 80 LP

UVC System Dulcodes 80 LP

The UVC Dulcodes is a world first in chemical-free disinfection of drinking water. This lamp is certified, which proves guaranteed lamp performance.

The Dulcodes LP is the first UV system, which is precisely controllable over a wide temperature range.

The unique combination of electronic ballast technology and the Vario-Flux lamps allows fast and precise dimming of the system within a wide capacity range of up to 50%. As a result, it automatically adapts to changing flow rates or changes in water temperature.

Loading...
In stock

The UVC Dulcodes is a world first in chemical-free disinfection of drinking water. This lamp is certified, which proves guaranteed lamp performance.

The Dulcodes LP is the first UV system, which is precisely controllable over a wide temperature range.

The unique combination of electronic ballast technology and the Vario-Flux lamps allows fast and precise dimming of the system within a wide capacity range of up to 50%. As a result, it automatically adapts to changing flow rates or changes in water temperature.

Maximum efficiency and minimum life-cycle costs, are achieved through the lower number of lamps and lower energy consumption.

The optimised flow in the reactors is based on intensive computer simulations. The irradiation dose is uniform, without over- and under-dosing. At the same time, pressure loss is kept to a minimum.

Technical properties:

  • Hydraulically optimised reactor made of high-quality 316L stainless steel.
  • High-performance "Vario-Flux" amalgam lamps with dynamic lamp heating
  • Guaranteed lamp life of 14,000 h (in proportion)
  • Electronic ballasts for energy-saving ignition, operation monitoring, individual monitoring and lamp control
  • DVGW/ÖVGW UVC sensor 160° opening angle, highly selective and ageing stable, built into the measuring window
  • Efficient and chemical-free cleaning of the quartz tubes with manual or automatic wiper system optionally available for selected system sizes
  • Permanent reactor temperature monitoring thanks to Pt 1000 temperature sensor
  • Single-lamp installation: optionally equipped with compact control or comfort control
  • Various options for easy integration of the system into higher-level control technology thanks to numerous analogue and digital interfaces and connections
  • Data loggers: all relevant operating data as well as results are stored on the SD card and can be easily and conveniently visualised with an analysis program
  • The DULCOnnect module enables easy online monitoring and control of the plant via web-based access via LAN/WLAN interface. The current plant status can be displayed on an end device at any time.
Technical data:
  • Maximum flow rate: 8.8 m³/hour*
  • Radiant power: 85 watts
  • Connected load: 110 Watt
  • Length of the irradiation chambers: 872 mm
  • Minimum space for maintenance work: 973 mm
  • Diameter: 140 mm
  • Connection diameter: 2"
Your benefits:
  • Unique dynamic lamp heating adjusts lamp capacity within seconds and ensures optimal disinfection even at varying flow rates and water temperatures
  • Homogeneous UV dose thanks to optimised flow dynamics in the reactor guarantees maximum flow rate with a minimum number of lamps and minimal pressure loss
  • Reduction of life-cycle costs: Use of high-performance Vario-Flux lamps with a long service life, low energy consumption and high UV output
  • High flexibility: floor-standing or horizontal installation and free choice of flange position
  • Switch cabinet with efficient forced cooling ensures long life of electronic components and protects against corrosion in aggressive ambient conditions
  • User-friendly and intuitive: control for displaying operating states and setting operating parameters
