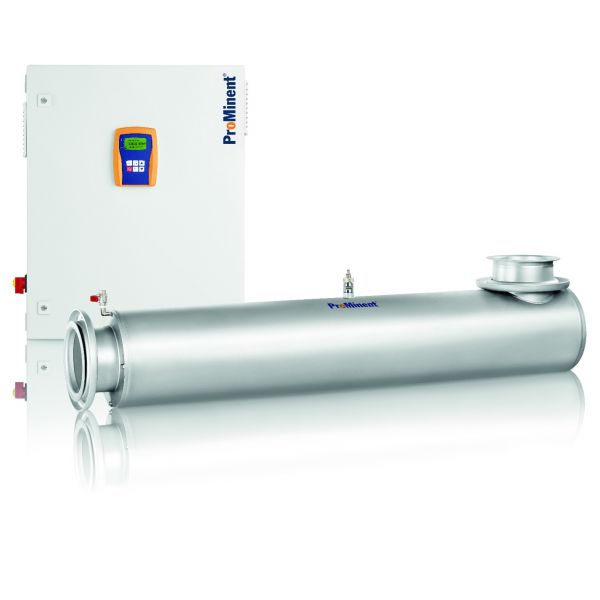

UVC System Dulcodes 230 LP

UVC System Dulcodes 230 LP

The UVC Dulcodes is a world first in chemical-free disinfection of drinking water. This lamp is certified, which proves guaranteed lamp performance. The Dulcodes LP is the first UV system, which is precisely controllable over a wide temperature range. The unique combination of electronic ballast technology and the Vario-Flux lamps allows fast and precise dimming of the system within a wide capacity range of up to 50%. As a result, it automatically adapts to changing flow rates or changes in water temperature.underdosing. At the same time, pressure loss is kept to a minimum.
Loading...
In stock

The UVC Dulcodes is a world first in chemical-free disinfection of drinking water. This lamp is certified, which proves guaranteed lamp performance.

The Dulcodes LP is the first UV system, which is precisely controllable over a wide temperature range.

The unique combination of electronic ballast technology and the Vario-Flux lamps allows fast and precise dimming of the system within a wide capacity range of up to 50%. As a result, it automatically adapts to changing flow rates or changes in water temperature.underdosing. At the same time, pressure loss is kept to a minimum.

Technical properties:

  • Hydraulically optimised reactor made of high-quality 316L stainless steel.
  • High-performance "Vario-Flux" amalgam lamps with dynamic lamp heating
  • Guaranteed lamp life of 14,000 h (in proportion)
  • Electronic ballasts for energy-saving ignition, operation monitoring, individual monitoring and lamp control
  • DVGW/ÖVGW UVC sensor 160° opening angle, highly selective and ageing stable, built into the measuring window
  • Efficient and chemical-free cleaning of the quartz tubes with manual or automatic wiper system optionally available for selected system sizes
  • Permanent reactor temperature monitoring thanks to Pt 1000 temperature sensor
  • Single-lamp installation: optionally equipped with compact control or comfort control
  • Various options for easy integration of the system into higher-level control technology thanks to numerous analogue and digital interfaces and connections
  • Data loggers: all relevant operating data as well as results are stored on the SD card and can be easily and conveniently visualised with an analysis program
  • The DULCOnnect module enables easy online monitoring and control of the plant via web-based access via LAN/WLAN interface. The current plant status can be displayed on an end device at any time.
Technical data:
  • Maximum flow rate: 35 m³/hour*
  • Radiant power: 270Watt
  • Connected power: 310Watt
  • Length of the irradiation chambers: 1151mm
  • Minimum space for maintenance work: 1064 mm
  • Diameter: 140 mm
  • Connection diameter: DN80

Your benefits:
  • Unique dynamic lamp heating adjusts lamp capacity within seconds and ensures optimal disinfection even at varying flow rates and water temperatures
  • Homogeneous UV dose thanks to optimised flow dynamics in the reactor guarantees maximum flow rate with a minimum number of lamps and minimal pressure loss
  • Reduction of life-cycle costs: Use of high-performance Vario-Flux lamps with a long service life, low energy consumption and high UV output
  • High flexibility: floor-standing or horizontal installation and free choice of flange position
  • Switch cabinet with efficient forced cooling ensures long life of electronic components and protects against corrosion in aggressive ambient conditions
  • User-friendly and intuitive: control for displaying operating states and setting operating parameters
