IF Dosing pump Beta4 1604 PVN2 (Clorious + sulphuric acid)

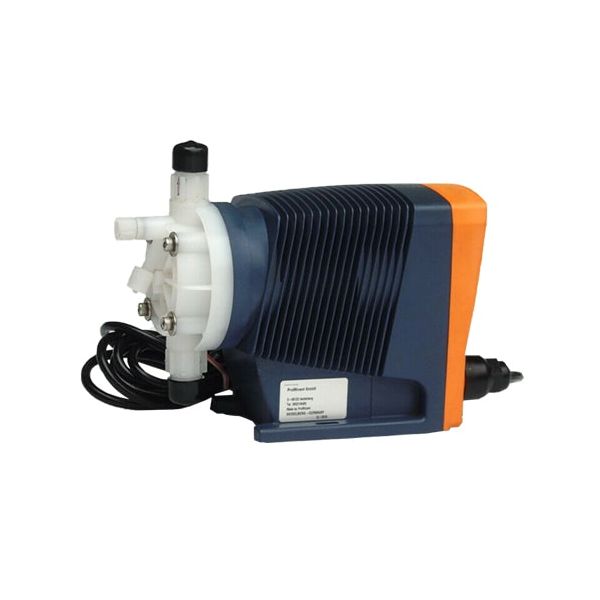

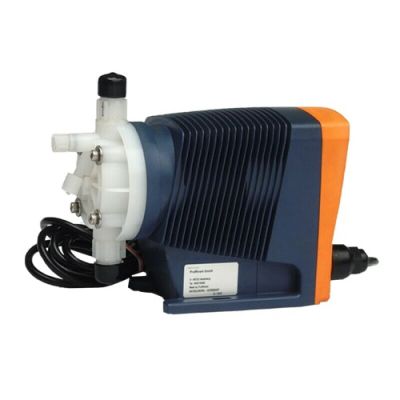

The Beta 1604 dosing pump is a universal magnetic dosing pump for dosing liquid products in water treatment. It is a simple, robust membrane dosing pump. The virtually wear-free magnetic drive guarantees an exceptionally long service life even Whiteh a maximum load.

The IF dosing pump Beta has the following features:

• Maximum pressure: 16 bar.
• Maximum dosage: 4 liters/hour.
• Maximum number of strokes per minute: 180.
• Dosage amount: 0.4 mL/stroke.
• Pump head made from PVDF (Teflon).
• External control via potential-free contacts Whiteh pulse multiplication and division for adaptation to the existing signal generator from 64: 1 to 1:64.

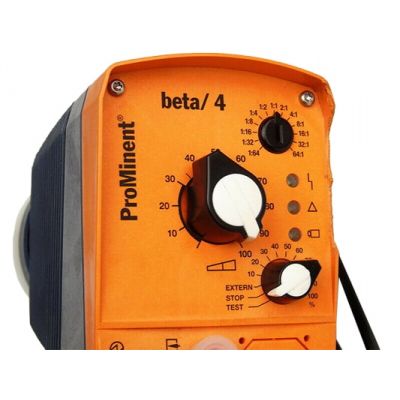

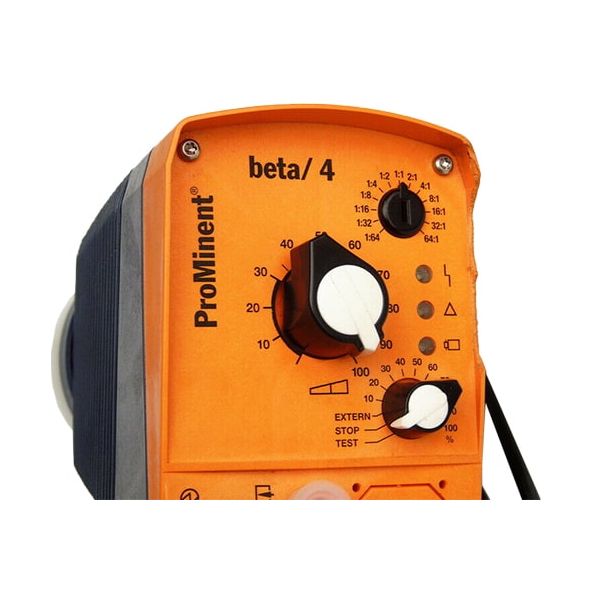

• Stroke frequency setting in steps of 10%, 10 - 100% corresponds to 18 - 180 strokes / min
• Stepless stroke length setting from 0 - 100% (recommended 30 - 100%).
• Maximum suction height: 6 meters.
• Connections: 6 * 4 mm.

Carefully read the manual before using this pump. Proper maintenance promotes the performance and ease of use of the IF Dosing Pump Beta. Guidelines regarding use, storage and transport can be found on the safety data sheet.
